Lintels – Standard Range

From £23.24 Excl. VAT

All our lintels comply with Eurocode 2 (the latest design code which replaces BS8110 in 2010 and BSEN845 part 2 : 2003).

All products are manufactured to Eurocode EC1992-1-1.

All fire rated products comply with Eurocode EC1992-1-2. All lintels are wet pre-cast products that use a 50N/ mm ² mix.

A complete range of products manufactured up to 6000mm long and 4000mm wide up to a weight of 4 tonnes.

All lintels over 50kg are cast with lifting sockets to ensure safe handling on site.

All fair faced lintels are hand finished to guarantee a smooth surface, free of any air holes.

All of our lintels are capable of dealing with single or multi point loads or being used in a cantilever situation. Lintels should be bedded on a level mortar bed of high grade mortar.

Description

All Damp Proof Course details, Cavity Tray details and wall vents should be in accordance with the current building regulations and architects detailing.

For all spans greater than 1200mm the units should be propped and supported temporarily at 1200mm centres with the resulting 3 courses of masonry having time to cure before the recommencement of the building work where concrete floors are to be placed onto units, the units should be supported temporarily until the floors have been completed to reduce the risk of shock loading or uneven loading of the lintels.

All lintels should be lifted with threaded lifting loops to ensure that the units are supported and installed to ensure correct handling of the units at all times. Lifting Loops can be ordered through us should you require them.

Standard Range

A cost effective solution for all major construction requirements, these units are available in a variety of sizes for all block and wall constructions. All can be used below ground and have a 30 minute fire resistance. We can manufacture any reasonable length that you may require.

Our Load Tables are working loads and therefore have a degree of safety. All figures are in KN/m. – The tables are generated on the Mr of the section properties.

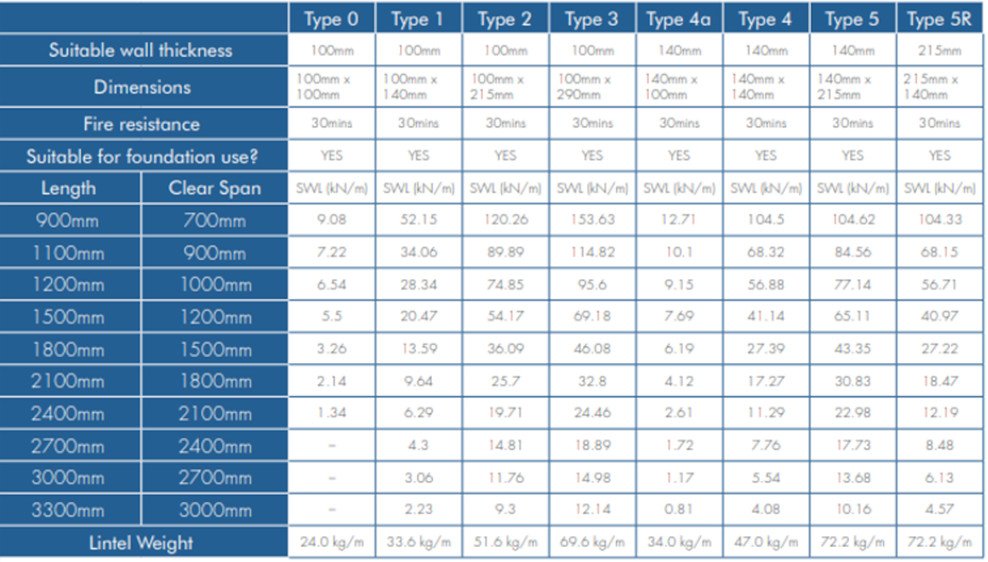

Standard Lintels Table

Additional information

Size

1200mm, 1350mm, 1500mm, 1800mm, 2100mm, 2400mm, 2700mm, 3000mm

Type

Type 0 (100×100), Type 1 (100×140), Type 2 (100×215), Type 3 (100×290), Type 4a (140×100), Type 4 (140×140), Type 5 (140×215), Type 6 (140×290), Type 7 (190×140), Type 8 (190×215), Type 9 (190×290), Type 10 (215×215), Type 11 (215×290)

Reviews

There are no reviews yet.


Be the first to review “Lintels – Standard Range”

1 of 5 stars 2 of 5 stars 3 of 5 stars 4 of 5 stars 5 of 5 stars

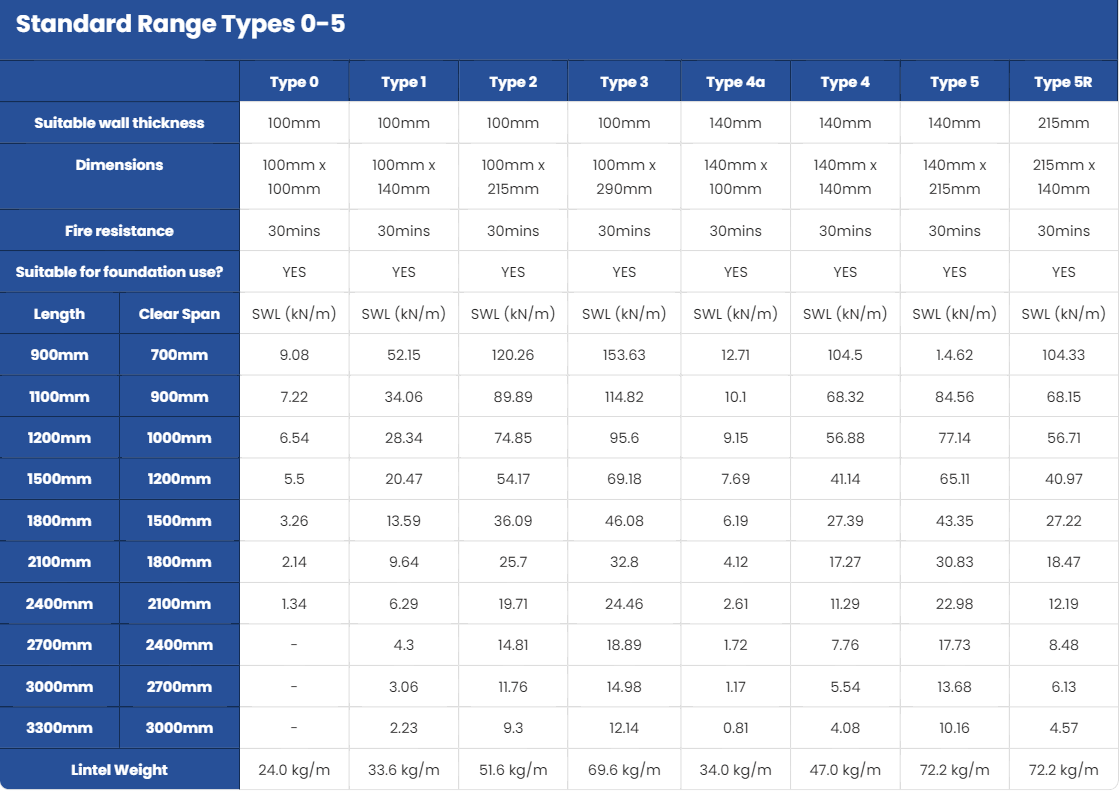

Load Table Types 0 - 5

Download

Standard lintels load table for types 0 - 5

Load Table Types 6 - 11

Download

Standard lintels load table for types 6 - 11
